2014 Honda FourTrax Rancher 4X4 Automatic DCT

Stock #01737
Your Price: $4,499

192 people have recently viewed it.
Check Availability
Hi, my name is and I'm interested in this 2014 Honda FourTrax Rancher 4X4 Automatic DCT . I'm in the area and you can reach me at or by phone at
Description

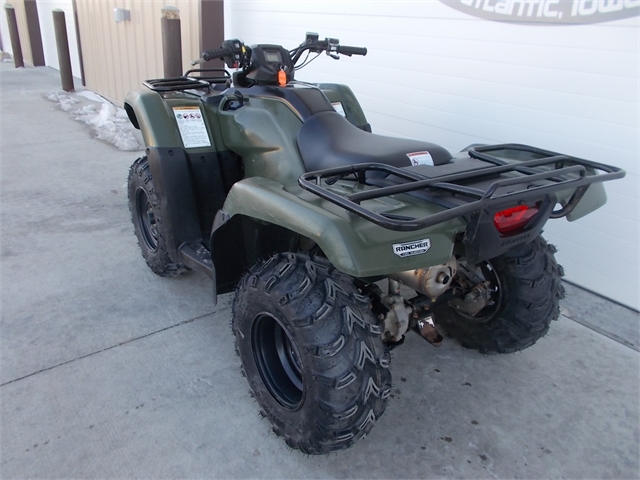

This 2014 Honda Rancher 420 is the automatic DCT but is the non power steering model.

Yes it has almost 21k miles on it but it runs great and is priced $700 under NADA. It's been all gone through and is ready to go!!

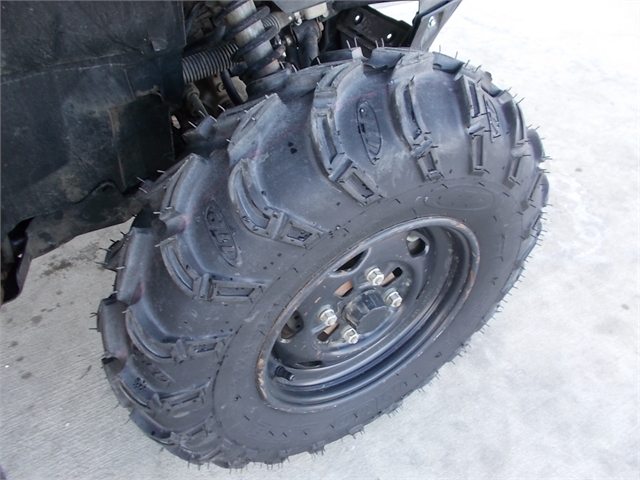

New Mud Lite tires, new battery, new brakes, new muffler and several other little things to bring it up to par.

Regardless of the miles, this machine won't stick around long with calving season upon us. Any long time Honda owner knows that 21k miles is nothing for a Honda ATV! We've seen over 40k miles before on them.

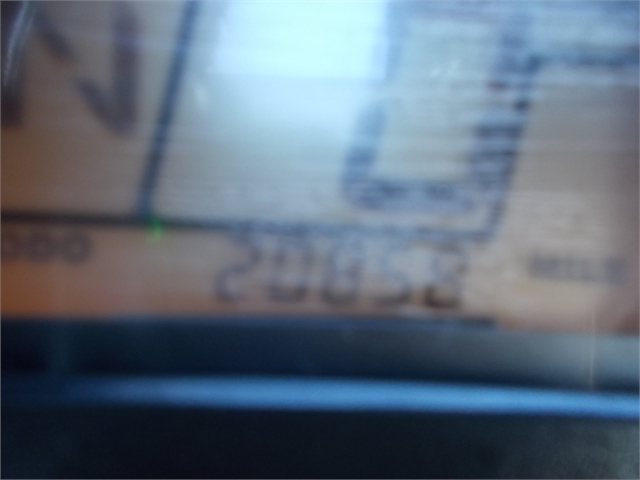

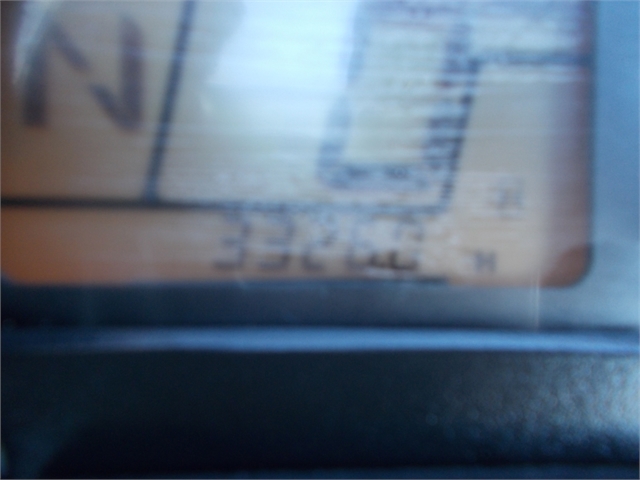

The miles and hours are a little hard to see clearly due to the meter cover being scratched.

  • Status:
    Pre-Owned
  • Vehicle:
    2014 Honda FourTrax Rancher 4X4 Automatic DCT
  • Model Number:
    TRX420FA1E
  • Hours:
    3326
  • Mileage:
    20,858 miles
  • Stock Number:
    01737
  • Location:
    Nishna Valley Cycle, Atlantic, IA 50022
  • Warranty:
    As Is

BRAKES

  • Front Brake Diameter (in):
    7.5
  • Front Brake Diameter (mm):
    190
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    6.3
  • Rear Brake Diameter (mm):
    160
  • Rear Brake Type:
    Sealed Drum

DRIVE LINE

  • Driveline Brand:
    TraxLok™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2

ENGINE

  • Bore (in):
    3.41
  • Bore (mm):
    86.5
  • Carburetion Brand:
    Keihin
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.9
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    420
  • Displacement (ci):
    25.6
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    33
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.82
  • Stroke (mm):
    71.5
  • Valve Configuration:
    OHV
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Brush Guard:
    Yes
  • CV Boot Cover:
    Yes
  • Floor Board Location:
    Driver
  • Frame:
    Steel

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    33.7
  • Seat Height (mm):
    856
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Manual

STORAGE

  • Capacity (kgs):
    29.9
  • Capacity (kgs):
    60.3
  • Capacity (lbs):
    133
  • Capacity (lbs):
    66

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    6.7
  • Front Travel (mm):
    170
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Swing Arm
  • Rear Travel (in):
    6.7
  • Rear Travel (mm):
    170

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    3.9
  • Fuel Capacity (l):
    14.8
  • Fuel Capacity Reserve (gal):
    1.3
  • Fuel Capacity Reserve (l):
    4.9
  • Ground Clearance (in):
    7.2
  • Ground Clearance (mm):
    182.9
  • Height (in):
    46.2
  • Height (mm):
    1173.5
  • Length (ft):
    6.9
  • Length (ft/ft):
    6
  • Length (ft/in):
    10.8
  • Length (in):
    82.8
  • Length (mm):
    2103.1
  • Towing Capacity (kgs):
    384.7
  • Towing Capacity (lbs):
    848
  • Turning Radius (ft):
    9.2
  • Wet Weight (kg):
    284
  • Wet Weight (lbs):
    626
  • Wheelbase (in):
    49.9
  • Wheelbase (mm):
    1267.5
  • Width (in):
    47.4
  • Width (mm):
    1204

TRANSMISSION

  • Number Of Speeds:
    5
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Manual / Automatic Clutch

WHEELS & TIRES

  • Front Tire (Full Spec):
    24 X 8-12
  • Front Tire Diameter (in):
    24
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    24 X 10-11
  • Rear Tire Diameter (in):
    24
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    11
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Steel
