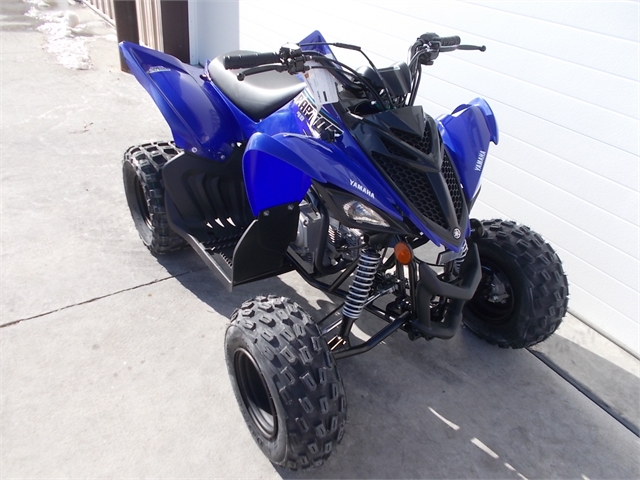

2023 Yamaha Raptor 90

Stock #09RYL
MSRP: $3,299 USD
Pricing Notes: Advertised pricing excludes destination fees, tax, and titling fees. Pricing and fees are subject to change without notice.
Check Availability
Hi, my name is and I'm interested in this 2023 Yamaha Raptor 90 . I'm in the area and you can reach me at or by phone at

Available Color

  • Team Yamaha Blue
  • White
Description

CALLING NEW RIDERS

With electric start, reverse and legendary Raptor styling, this youth ATV is pure fun for riders age 10 and up.

Starting at:

$3,299

Destination Charge: $325

Freight Surcharge: $100

TOP FEATURES

  • Compact, Sporty and Confidence-Inspiring 90cc Engine
    The Raptor 90 is built to bring maximum fun to the youth ATV class for riders ages 10 and up. The low-maintenance 90cc engine is tuned to develop excellent low- to mid-range performance. A fully automatic CVT transmission with reverse, gated shifter and electric start with a back-up kickstart all come standard.
  • Reduced Maintenance Design
    Servicing is simple thanks to features like the toolless quick-access air filter element.
  • Scaled Down, Not Scaled Back
    Compact A-arm front suspension is tuned for light, sporty steering and comfortable ride quality. The preload-adjustable front shocks offer 5 inches of wheel travel and add to the Raptor 90’s full-size ATV look. The rear swingarm also features a 5-way preload adjustable shock, offering 5.7 inches of wheel travel.
  • Comfortable Chassis
    An advanced frame design incorporates a large 1.7-gallon fuel tank, plush seat and roomy integrated floorboards inside a long, secure wheelbase.
  • Yamaha Raptor DNA
    For sporty looks and handling, the Raptor 90 uses low-profile Duro® tires on lightweight wheels and styling that's unmistakably inspired by the mighty Raptor 700R.
  • Status:
    New
  • Vehicle:
    2023 Yamaha Raptor 90
  • Stock Number:
    09RYL
  • Location:
    Nishna Valley Cycle, Atlantic, IA 50022
  • Warranty:
    Manufacturer's

BRAKES

  • Front Brake Type:
    Dual Sealed Drum
  • Rear Brake Type:
    Drum

DRIVE LINE

  • Driveline Type:
    4X2
  • Number Of Driveline Modes:
    1
  • Rear Solid Axle:
    Yes

ENGINE

  • Bore (in):
    1.85
  • Bore (mm):
    47
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    13
  • Carburetor:
    Yes
  • Compression Ratio:
    9.2
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    90
  • Displacement (ci):
    5.5
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Number Of Carburetors:
    1
  • Speed Governor:
    Yes
  • Starter:
    Electric / Kick
  • Stroke (in):
    2.04
  • Stroke (mm):
    51.8
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Floor Board Location:
    Driver
  • Foot Peg Location:
    Driver
  • Frame:
    Steel

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    29.5
  • Seat Height (mm):
    749.3
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Manual

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Type:
    A-Arm
  • Front Travel (in):
    5
  • Front Travel (mm):
    127
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Type:
    Swing Arm
  • Rear Travel (in):
    5.7
  • Rear Travel (mm):
    144.8

TECHNICAL SPECIFICATIONS

  • Engine Displacement to Weight (cc):
    0.32
  • Fuel Capacity (gal):
    1.7
  • Fuel Capacity (l):
    6.4
  • Ground Clearance (in):
    3.9
  • Ground Clearance (mm):
    99.1
  • Height (in):
    37.6
  • Height (mm):
    955
  • Length (ft):
    4.88
  • Length (ft/ft):
    4
  • Length (ft/in):
    10.5
  • Length (in):
    58.5
  • Length (mm):
    1485.9
  • Wet Weight (kg):
    126.6
  • Wet Weight (lbs):
    279
  • Wheelbase (in):
    40.6
  • Wheelbase (mm):
    1031.2
  • Width (in):
    40.2
  • Width (mm):
    1021.1

TRANSMISSION

  • Primary Drive (Rear Wheel):
    Chain
  • Reverse:
    Yes
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Duro AT 18 X 7-8
  • Front Tire Diameter (in):
    18
  • Front Tire Width:
    7
  • Front Wheel Diameter:
    8
  • Rear Tire (Full Spec):
    Duro AT 18 X 9-8
  • Rear Tire Diameter (in):
    18
  • Rear Tire Width:
    9
  • Rear Wheel Diameter:
    8
  • Tire Brand:
    Duro
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Steel
