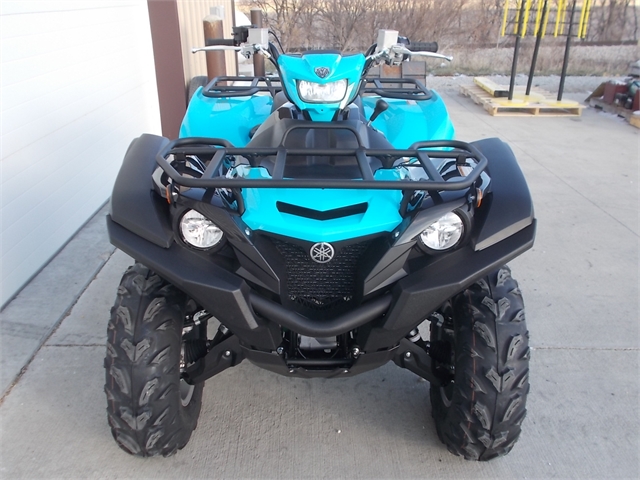

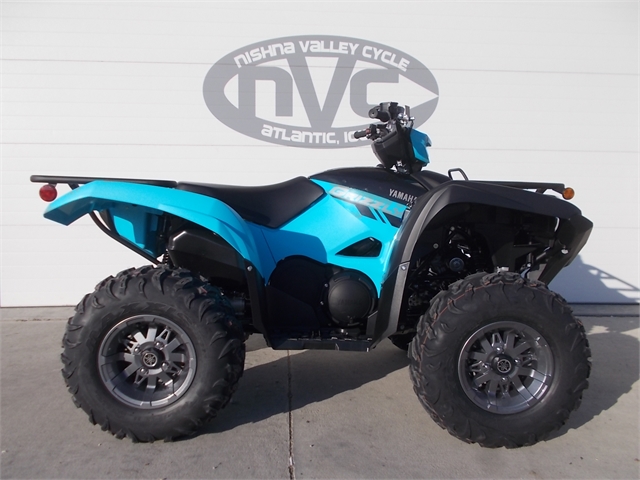

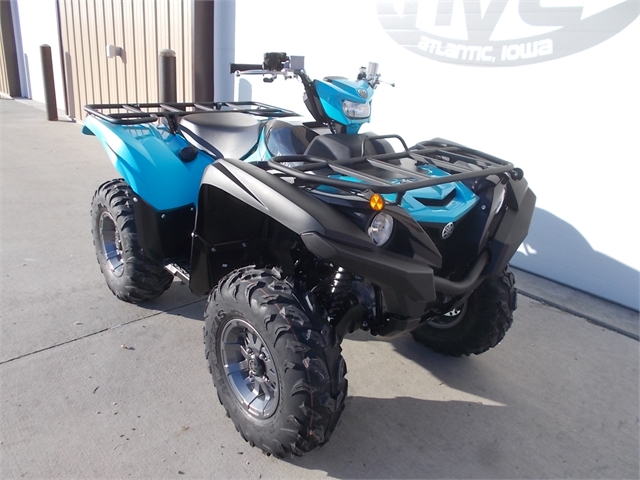

2023 Yamaha Grizzly EPS

Stock #70GPAPL
MSRP: $11,399 USD
Pricing Notes: Advertised pricing excludes destination fees, tax, and titling fees. Pricing and fees are subject to change without notice.

104 people have recently viewed it.
Check Availability
Hi, my name is and I'm interested in this 2023 Yamaha Grizzly EPS . I'm in the area and you can reach me at or by phone at

Available Color

  • Cyan / Yamaha Black
  • REALTREE® Edge
    $400
Description

TRAIL TESTED, RIDER APPROVED

With superior capability, all‑day comfort and legendary durability, the Grizzly EPS is the best‑performing ATV in its class.

Starting at:

$11,399

Destination Charge: $460

Freight Surcharge: $300

  • Status:
    New
  • Vehicle:
    2023 Yamaha Grizzly EPS
  • Stock Number:
    70GPAPL
  • Location:
    Nishna Valley Cycle, Atlantic, IA 50022
  • Warranty:
    Manufacturer's

BRAKES

  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Dual Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Front
  • Driveline Brand:
    On-Command™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2

ENGINE

  • Bore (in):
    4.02
  • Bore (mm):
    102
  • Carburetion Brand:
    Mikuni
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.0
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    686
  • Displacement (ci):
    41.8
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    44
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    3.31
  • Stroke (mm):
    84
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Bash Plate (Rear):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • CV Boot Cover:
    Yes
  • Floor Board Location:
    Driver
  • Foot Peg Location:
    Driver
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    36.1
  • Seat Height (mm):
    916.9
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Brand:
    Electronic Power Steering (EPS)
  • Steering Control:
    Handlebar
  • Steering Type:
    Power

STORAGE

  • Capacity (kgs):
    49.9
  • Capacity (kgs):
    89.8
  • Capacity (lbs):
    110
  • Capacity (lbs):
    198
  • Fender Storage Location:
    Front

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    7.6
  • Front Travel (mm):
    193
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double Wishbone
  • Rear Travel (in):
    9.1
  • Rear Travel (mm):
    231.1

TECHNICAL SPECIFICATIONS

  • Engine Displacement to Weight (cc):
    0.98
  • Fuel Capacity (gal):
    4.8
  • Fuel Capacity (l):
    18.2
  • Ground Clearance (in):
    11.3
  • Ground Clearance (mm):
    287
  • Height (in):
    49.3
  • Height (mm):
    1252.2
  • Length (ft):
    6.79
  • Length (ft/ft):
    6
  • Length (ft/in):
    9.5
  • Length (in):
    81.5
  • Length (mm):
    2070.1
  • Towing Capacity (kgs):
    589.7
  • Towing Capacity (lbs):
    1300
  • Turning Radius (ft):
    12.2
  • Wet Weight (kg):
    318
  • Wet Weight (lbs):
    701
  • Wheelbase (in):
    49.2
  • Wheelbase (mm):
    1249.7
  • Width (in):
    48.4
  • Width (mm):
    1229.4

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    UltraMatic™
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® AT26 x 8 - 12 MU05Y
  • Front Tire Diameter (in):
    26
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Maxxis® AT26 x 10 - 12 MU06Y
  • Rear Tire Diameter (in):
    26
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Maxxis®
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Aluminum
