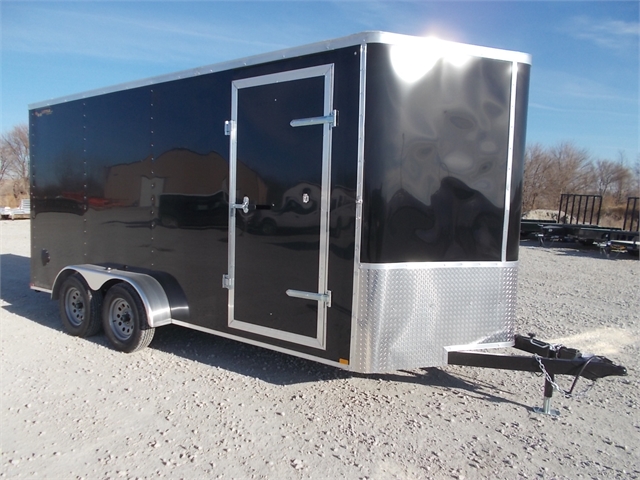

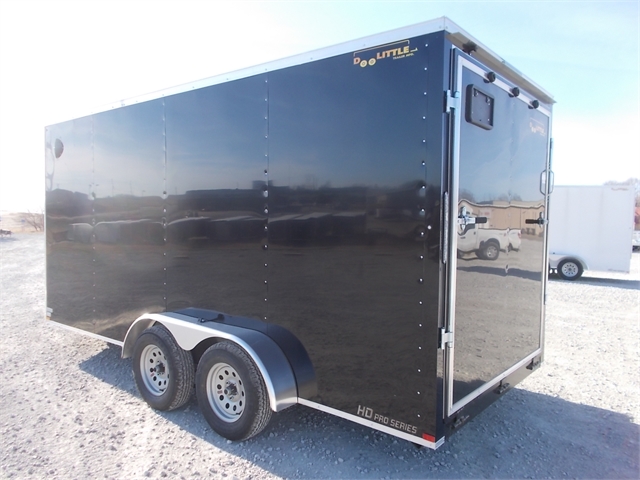

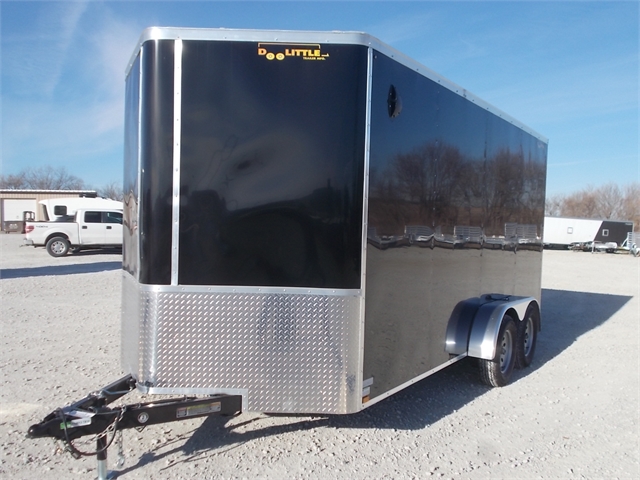

2023 Doolittle Trailers Cargomaster 7'x16' 7K

Affordable Class of Work and Play Trailers designed to provide years of safe, secure towing.
Cargomaster Trailers require very little maintenance. Haul your cars, motorcycles and ATVs affordably with the Cargomaster!

6" Extra Height (80" Door Opening)

SPECS:

Approx. Hitch Weight - 225 lbs

Approx. Empty Weight - 2390 lbs

Overall Length - 20'3"

Overall Width - 102"

Overall Height - 98.5" (Plus 6" on this unit)

Interior Length - 18'

Interior Width - 80.5"

Interior Height - 78" (Plus 6" on this unit)

Floor Height - 20"

Coupler Height - 17"

Ramp Door Height - 74" (Plus 6" on this unit)

Ramp Door Width - 73.5"

Frame -  2"x4" Steel Tubing

Tongue -  2"x4" Steel Tubing

Crossmembers - Preformed Z, 16" O.C.

Coupler - 2 5/16" A-Frame

Plug - 7-Way RV, Molded

Standard Features:

16" On-Center Uprights
Recessed 3/4" plywood-floor, fully undercoated
LED Lights
3/8" plywood wall liner
Heavy gauge (.080") aluminum roof cove
Long wearing aluminum exterior sheathing (.030")
Drip rails over all doors
Rounded nose provides extra cargo space
Dome light with wall switch
Flow through ventilation system
White spoke wheels
Long-life coating on fasteners
4" Drop Spring Axles
Radial tires
EZ lube hubs
Primed and painted throughout
Camlock rear doors
Flush mount door fasteners
Galvanized roof
Safety chains
Aerodynamics fiberglass front cap
Double-dipped zinc coated hinges with nylon bushings
Metal door hold backs
36" Side Door (12' & Up)
24" Stone Guard (16" on 5' Wide)
3 Yr-Frame / 1 Yr-General Warranty
Removable Safety Chains
Colors: Black, Red, White, Grey
4 Wheel Brakes (Tandem Axles Only)

KEY FEATURES

• 5 Yr-Frame / 1 Yr-General Warranty (Industry Leading)
• 50 Year Floor Warranty (Industry Leading)
• Radial Tires
• 4″ Drop Spring Axles
• LED Lights
• 16″ On-Center Uprights
• 30″ Stone Guard (16″ on 5′ Wide)
• Square Tube Uprights
• 3/8″ Plywood on Walls
