2022 Doolittle Trailers UT84X12 Pipe Top

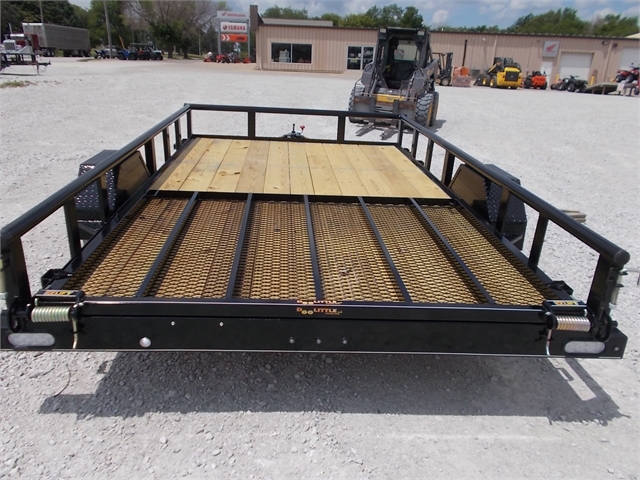

Our Doolittle Utility trailer is our Premier utility line and is our flagship model! If you need a quality trailer to protect and haul, then look no further! This pipe top trailer is built tough to handle your hauling needs! This flatbed trailer features a Wrapped Tongue on 12' & up models, EZ Steps, LED Lights, fully enclosed rear bumpers, a spring assist gate, lockable tool box, and radial tires. You won't find a better manufactured trailer in Missouri than this utility model. If you're near Kansas City or Jefferson City, drop in to see the different styles we have of this lineup.

SPECS:

GVWR - 2990 lbs

Approximate Empty Weight - 1355 lbs

Deck Length - 121'

Overall Length - 15'3"

Deck Width - 83 3/4"

Overall Width - 102"

Deck Height - 19"

Coupler Height - 17"

Coupler - 2" A-Frame

Tie Downs - 4 Stake Pockets

Main Frame - 2"X3"X3/16" Angle

Side Rail - 2 3/8" Pipe Top

Crossmembers - 2"X3"X3/16" Angle

Crossmembers - Spacing - 24"

Tongue - 3" Channel Wrapped

Safety Chains - 1/4"X27" Removable

Suspension - Double Eye Spring

Wheel Lug Pattern - 5 on 4.5

Wheels - 15" MOD

Tires - ST205/75T15 6 Ply

Floor - Treated Yellow Pine

Plug - 4 Way Molded

Lights, DOT Approved - LED

Wiring - Protected in Conduit & in Rear Tube Crossmember w/ 3M Gel Connections

Primer - 2 Part Epoxy

Paint - 2 Part Polyeurethane, Baked

Standard Features

Dexter Axles

Radial Tires

Removable Safety Chains

EZ Lube Hubs

Steel White Mod Wheels

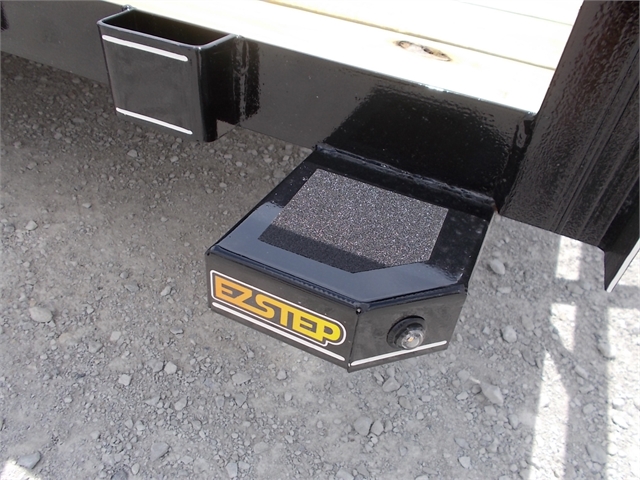

EZ Step with built-in Bullitt LED Marker Lights

Complete Break-A-Way System w/Charger

#1 -- 2" Treated Pine Floor

LED Lights (DOT Compliant)

Grommet Mount Sealed Lighting

Easily Accessible & Protected Wiring

Finish is a 2 Component Epoxy Primer and 2 Component Polyurethane Paint

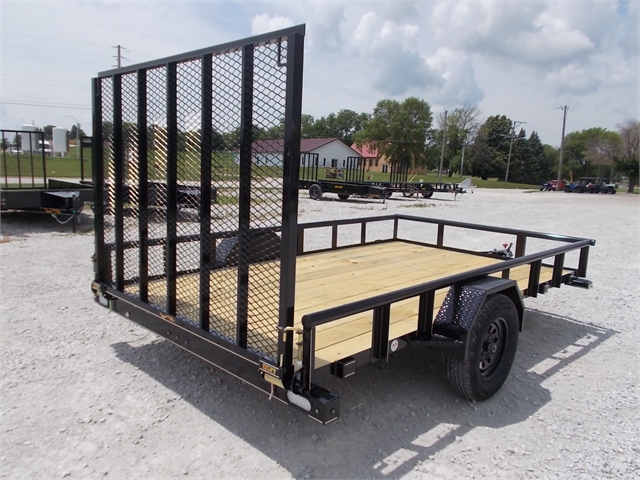

5' Square Tube Spring Assist Mesh Gate (Lays flat on bed of trailer)

Triple Channel Wrapped Tongue

Pipe Top

2" x 4" Stake Pocket Tie Downs

3M Gel Connections (prevents faulty connections & wire corrosion)

24" O.C. Crossmembers

2K Set back, Flip-Up Jack w/ Sand Foot

Fully Sealed Rear Bumper
